In this post, we will see CUDA Vector Addition Program | Basics of CUDA Programming with CUDA Array Addition with All Cases | cuda vector addition,cuda programming,cuda programming tutorial,cuda programming c++,cuda programming model,cuda programming tutorial for beginners,cuda programming for beginners,cuda programming basics,cuda programming nvidia,cuda processor,cuda program for array addition.
Watch following video:
Watch on YouTube: https://www.youtube.com/watch?v=vo0eCxoAf68
Following programs are checked on Nsight Eclipse. Nsight Eclipse is Eclipse IDE for C/C++ bundled with the libraries of CUDA. These results are checked on a system which has GPU of compute capability of 1.2. But you will get the same result on GPU of any compute capability for the following code.
Here three cases are considered for addition of two arrays:
1. n blocks and one thread per block.
2. 1 block and n threads in that block.
3. m blocks and n threads per block.
Program's complete code and the respective output is given below.
1. n blocks and one thread per block (In this example n=6)
Output:
2. One block and n threads in that block (In this example n=6)
Output:
Output:
Watch following video:
Watch on YouTube: https://www.youtube.com/watch?v=vo0eCxoAf68
Following programs are checked on Nsight Eclipse. Nsight Eclipse is Eclipse IDE for C/C++ bundled with the libraries of CUDA. These results are checked on a system which has GPU of compute capability of 1.2. But you will get the same result on GPU of any compute capability for the following code.
Here three cases are considered for addition of two arrays:
1. n blocks and one thread per block.
2. 1 block and n threads in that block.
3. m blocks and n threads per block.
Program's complete code and the respective output is given below.
1. n blocks and one thread per block (In this example n=6)
#include<stdio.h>
#include<cuda.h>
__global__ void arradd(int *x,int *y, int *z) //kernel definition
{
int id=blockIdx.x;
/* blockIdx.x gives the respective block id which starts from 0 */
z[id]=x[id]+y[id];
}
int main()
{
int a[6];
int b[6];
int c[6];
int *d,*e,*f;
int i;
printf("\n Enter six elements of first array\n");
for(i=0;i<6;i++)
{
scanf("%d",&a[i]);
}
printf("\n Enter six elements of second array\n");
for(i=0;i<6;i++)
{
scanf("%d",&b[i]);
}
/* cudaMalloc() allocates memory from Global memory on GPU */
cudaMalloc((void **)&d,6*sizeof(int));
cudaMalloc((void **)&e,6*sizeof(int));
cudaMalloc((void **)&f,6*sizeof(int));
/* cudaMemcpy() copies the contents from destination to source. Here destination is GPU(d,e) and source is CPU(a,b) */
cudaMemcpy(d,a,6*sizeof(int),cudaMemcpyHostToDevice);
cudaMemcpy(e,b,6*sizeof(int),cudaMemcpyHostToDevice);
/* call to kernel. Here 6 is number of blocks, 1 is the number of threads per block and d,e,f are the arguments */
arradd<<<6,1>>>(d,e,f);
/* Here we are copying content from GPU(Device) to CPU(Host) */
cudaMemcpy(c,f,6*sizeof(int),cudaMemcpyDeviceToHost);
printf("\nSum of two arrays:\n ");
for(i=0;i<6;i++)
{
printf("%d\t",c[i]);
}
/* Free the memory allocated to pointers d,e,f */
cudaFree(d);
cudaFree(e);
cudaFree(f);
return 0;
}
#include<cuda.h>
__global__ void arradd(int *x,int *y, int *z) //kernel definition
{
int id=blockIdx.x;
/* blockIdx.x gives the respective block id which starts from 0 */
z[id]=x[id]+y[id];
}
int main()
{
int a[6];
int b[6];
int c[6];
int *d,*e,*f;
int i;
printf("\n Enter six elements of first array\n");
for(i=0;i<6;i++)
{
scanf("%d",&a[i]);
}
printf("\n Enter six elements of second array\n");
for(i=0;i<6;i++)
{
scanf("%d",&b[i]);
}
/* cudaMalloc() allocates memory from Global memory on GPU */
cudaMalloc((void **)&d,6*sizeof(int));
cudaMalloc((void **)&e,6*sizeof(int));
cudaMalloc((void **)&f,6*sizeof(int));
/* cudaMemcpy() copies the contents from destination to source. Here destination is GPU(d,e) and source is CPU(a,b) */
cudaMemcpy(d,a,6*sizeof(int),cudaMemcpyHostToDevice);
cudaMemcpy(e,b,6*sizeof(int),cudaMemcpyHostToDevice);
/* call to kernel. Here 6 is number of blocks, 1 is the number of threads per block and d,e,f are the arguments */
arradd<<<6,1>>>(d,e,f);
/* Here we are copying content from GPU(Device) to CPU(Host) */
cudaMemcpy(c,f,6*sizeof(int),cudaMemcpyDeviceToHost);
printf("\nSum of two arrays:\n ");
for(i=0;i<6;i++)
{
printf("%d\t",c[i]);
}
/* Free the memory allocated to pointers d,e,f */
cudaFree(d);
cudaFree(e);
cudaFree(f);
return 0;
}
Output:
Enter six elements of first array
1 2 3 4 5 6
Enter six elements of second array
2 3 4 5 6 7
Sum of two arrays:
3 5 7 9 11 13
1 2 3 4 5 6
Enter six elements of second array
2 3 4 5 6 7
Sum of two arrays:
3 5 7 9 11 13
2. One block and n threads in that block (In this example n=6)
#include<stdio.h>
#include<cuda.h>
__global__ void arradd(int *x,int *y, int *z)
{
int id=threadIdx.x;
/* threadIdx.x gives the respective thread id which starts from 0 */
z[id]=x[id]+y[id];
}
int main()
{
int a[6];
int b[6];
int c[6];
int *d,*e,*f;
int i;
printf("\n Enter six elements of first array\n");
for(i=0;i<6;i++)
{
scanf("%d",&a[i]);
}
printf("\n Enter six elements of second array\n");
for(i=0;i<6;i++)
{
scanf("%d",&b[i]);
}
cudaMalloc((void **)&d,6*sizeof(int));
cudaMalloc((void **)&e,6*sizeof(int));
cudaMalloc((void **)&f,6*sizeof(int));
cudaMemcpy(d,a,6*sizeof(int),cudaMemcpyHostToDevice); cudaMemcpy(e,b,6*sizeof(int),cudaMemcpyHostToDevice);
arradd<<<1,6>>>(d,e,f);
cudaMemcpy(c,f,6*sizeof(int),cudaMemcpyDeviceToHost);
printf("\nSum of two arrays:\n ");
for(i=0;i<6;i++)
{
printf("%d\t",c[i]);
}
cudaFree(d);
cudaFree(e);
cudaFree(f);
return 0;
}
#include<cuda.h>
__global__ void arradd(int *x,int *y, int *z)
{
int id=threadIdx.x;
/* threadIdx.x gives the respective thread id which starts from 0 */
z[id]=x[id]+y[id];
}
int main()
{
int a[6];
int b[6];
int c[6];
int *d,*e,*f;
int i;
printf("\n Enter six elements of first array\n");
for(i=0;i<6;i++)
{
scanf("%d",&a[i]);
}
printf("\n Enter six elements of second array\n");
for(i=0;i<6;i++)
{
scanf("%d",&b[i]);
}
cudaMalloc((void **)&d,6*sizeof(int));
cudaMalloc((void **)&e,6*sizeof(int));
cudaMalloc((void **)&f,6*sizeof(int));
cudaMemcpy(d,a,6*sizeof(int),cudaMemcpyHostToDevice); cudaMemcpy(e,b,6*sizeof(int),cudaMemcpyHostToDevice);
arradd<<<1,6>>>(d,e,f);
cudaMemcpy(c,f,6*sizeof(int),cudaMemcpyDeviceToHost);
printf("\nSum of two arrays:\n ");
for(i=0;i<6;i++)
{
printf("%d\t",c[i]);
}
cudaFree(d);
cudaFree(e);
cudaFree(f);
return 0;
}
Output:
Enter six elements of first array
1 2 3 4 5 6
Enter six elements of second array
2 3 4 5 6 7
Sum of two arrays:
3 5 7 9 11 13
1 2 3 4 5 6
Enter six elements of second array
2 3 4 5 6 7
Sum of two arrays:
3 5 7 9 11 13
#include<stdio.h>
#include<cuda.h>
__global__ void arradd(int *x,int *y, int *z)
{

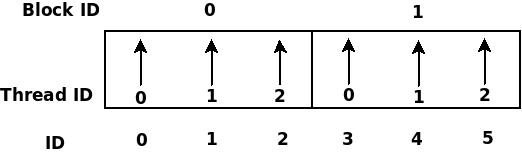

int id=blockIdx.x * blockDim.x+threadIdx.x;
/* blockIdx.x gives the respective block id which starts from 0 */
/* threadIdx.x gives the respective thread id which starts from 0 */
/* blockDim.x gives the dimension of block i.e. number of threads in one block */
z[id]=x[id]+y[id];
}
int main()
{
int a[6];
int b[6];
int c[6];
int *d,*e,*f;
int i;
printf("\n Enter six elements of first array\n");
for(i=0;i<6;i++)
{
scanf("%d",&a[i]);
}
printf("\n Enter six elements of second array\n");
for(i=0;i<6;i++)
{
scanf("%d",&b[i]);
}
cudaMalloc((void **)&d,6*sizeof(int));
cudaMalloc((void **)&e,6*sizeof(int));
cudaMalloc((void **)&f,6*sizeof(int));
cudaMemcpy(d,a,6*sizeof(int),cudaMemcpyHostToDevice);
cudaMemcpy(e,b,6*sizeof(int),cudaMemcpyHostToDevice);
arradd<<<2,3>>>(d,e,f);
cudaMemcpy(c,f,6*sizeof(int),cudaMemcpyDeviceToHost);
printf("\nSum of two arrays:\n ");
for(i=0;i<6;i++)
{
printf("%d\t",c[i]);
}
cudaFree(d);
cudaFree(e);
cudaFree(f);
return 0;
}
#include<cuda.h>
__global__ void arradd(int *x,int *y, int *z)
{
int id=blockIdx.x * blockDim.x+threadIdx.x;
/* blockIdx.x gives the respective block id which starts from 0 */
/* threadIdx.x gives the respective thread id which starts from 0 */
/* blockDim.x gives the dimension of block i.e. number of threads in one block */
z[id]=x[id]+y[id];
}
int main()
{
int a[6];
int b[6];
int c[6];
int *d,*e,*f;
int i;
printf("\n Enter six elements of first array\n");
for(i=0;i<6;i++)
{
scanf("%d",&a[i]);
}
printf("\n Enter six elements of second array\n");
for(i=0;i<6;i++)
{
scanf("%d",&b[i]);
}
cudaMalloc((void **)&d,6*sizeof(int));
cudaMalloc((void **)&e,6*sizeof(int));
cudaMalloc((void **)&f,6*sizeof(int));
cudaMemcpy(d,a,6*sizeof(int),cudaMemcpyHostToDevice);
cudaMemcpy(e,b,6*sizeof(int),cudaMemcpyHostToDevice);
arradd<<<2,3>>>(d,e,f);
cudaMemcpy(c,f,6*sizeof(int),cudaMemcpyDeviceToHost);
printf("\nSum of two arrays:\n ");
for(i=0;i<6;i++)
{
printf("%d\t",c[i]);
}
cudaFree(d);
cudaFree(e);
cudaFree(f);
return 0;
}
Output:
Enter six elements of first array
1 2 3 4 5 6
Enter six elements of second array
2 3 4 5 6 7
Sum of two arrays:
3 5 7 9 11 13
1 2 3 4 5 6
Enter six elements of second array
2 3 4 5 6 7
Sum of two arrays:
3 5 7 9 11 13
